RJ45 Connector Shielded/Unshielded for CAT6 CAT5e Cable

RJ45 Connector

RJ45 Connector Shielded/Unshielded for CAT6 CAT5e Cable





RJ45 Connector Shielded/Unshielded for CAT6 CAT5e Cable.

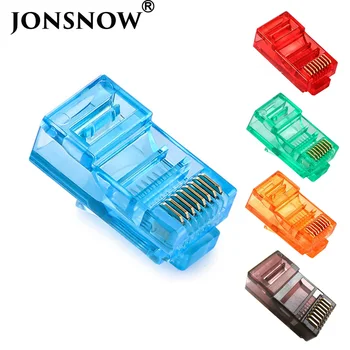

RJ45 Connector is a connector with 8 pins, mainly used in Ethernet, “RJ” represents the registered jack, and “45” represents the serial number of the interface standard.



The RJ45 crystal head is usually terminated on an Ethernet cable to connect various network devices, such as computers, routers, switches, etc.

RJ45 Connector Shielded/Unshielded for CAT6 CAT5e Cable



There are two wire sequence standards for RJ45connector wiring: T-568A and T-568B (details are as follows).

Through the use of different standards, the final network cable produced has two types: straight-through and cross-type.



RJ45 Connector Shielded/Unshielded for CAT6 CAT5e Cable



If you want to make a straight-through network cable, both ends of the cable can be wired according to the same standard (T-568A or T-568B).

If you want to make a crossover network cable, the two ends of the cable should be wired according to different standards.
